John Deere 4.5L Engine Overhaul Kit, PT, Standard Piston Marked RE515372 - RE66093 (Aftermarket)
Description & Features

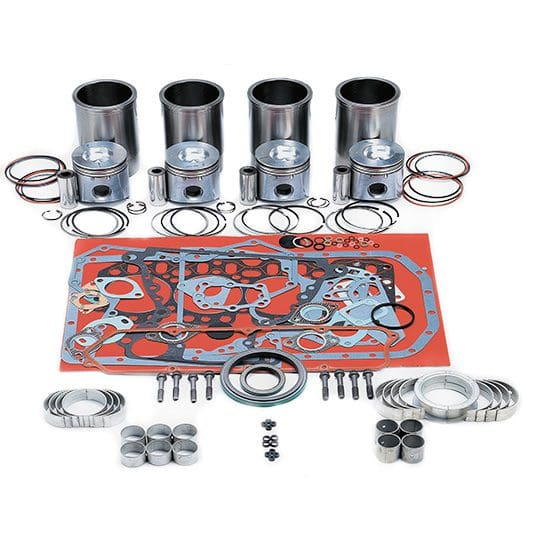

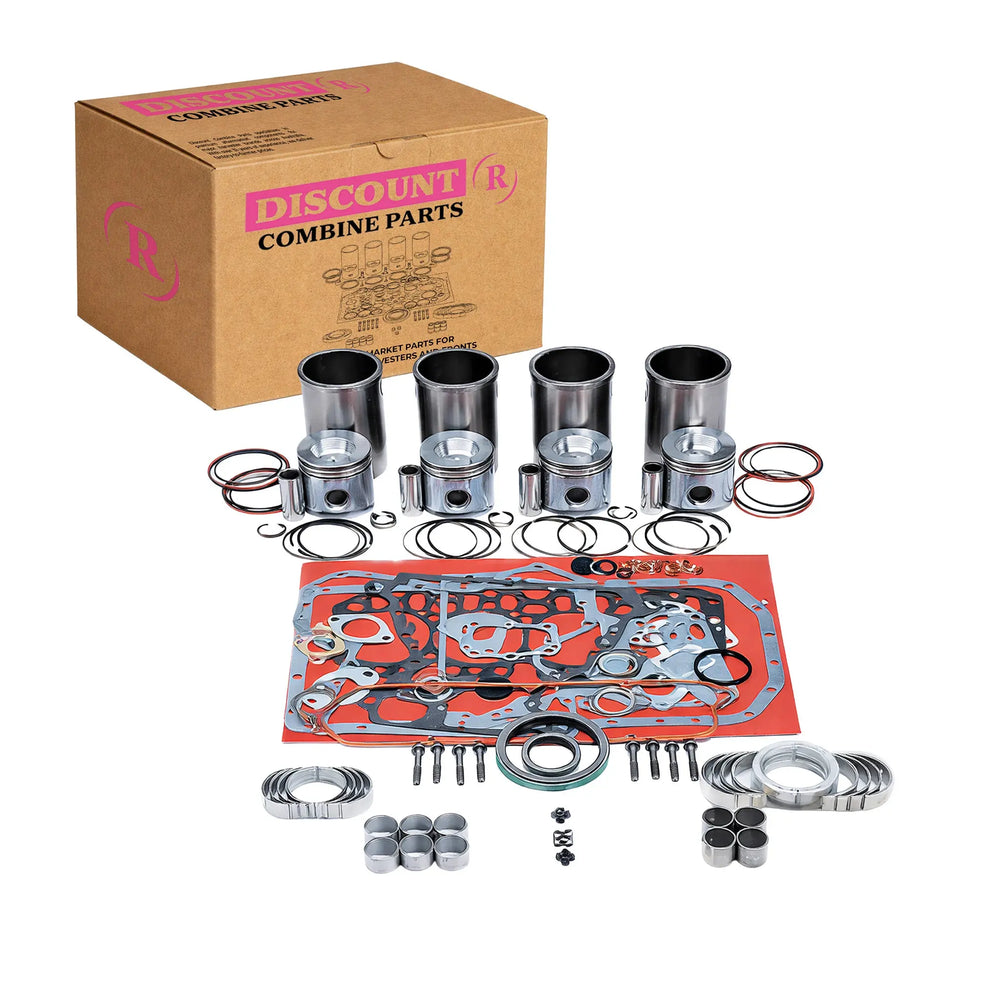

John Deere 4.5L Engine Overhaul Kit, PT, Standard Piston (Piston Marked RE515372)
|
Spec |
Value |
|
Bore |
4.19 inch / 106.5 mm |
|
Pin |
1.3750 inch / (+/- .0002) = 35mm |
|
Kit OEM^ |
RE66093 |
Kit Inclusions:
| Part# | Part Description | Qty |
|
RE501455 |
4045 Gasket Overhaul Set |
1 |
|
RE507920 |
4045 Cylinder Liner Kit | 4 |
|
RE65908 |
Standard 4.5 Conrod Bearing* | 4 |
|
RE65165 |
Standard 4.5 Main Bearing* | 4 |
| RE65168 | Standard 4.5 Thrust Bearing* | 1 |
|
R114083 |
4045 Connecting Capscrew Rod Bolts | 8 |
|
R123960 |
4045 Bushing Connecting Rod 35mm | 4 |
|
R119874 |
4045 Camshaft Bushing | 1 |
| R115299 | 4045 Bushing Balancer Shaft | 6 |
* Kit shipped with standard bearings. Please select correct bearing size when adding to cart.
Compatible With John Deere Equipment:
|
Type |
Model Numbers |
|
Engines |
4045DF120, 4045TP073, 4045DF150, 4045TP074, 4045DF158, 4045TP075, 4045DF270, 4045TP076, 4045DFM50, 4045TP077, 4045DJ01, 4045TP078, 4045DLV51, 4045TP079, 4045DT050, 4045TP080, 4045DT055, 4045TP081, 4045DT056, 4045TRT50, 4045DT058, 4045TT050, 4045DT059, 4045TT053, 4045DT060, 4045TT056, 4045HT050, 4045TT057, 4045HT051, 4045TT058, 4045TAT50, 4045TT064, 4045TAT70, 4045TT065, 4045TAT71, 4045TT066, 4045TCQ02, 4045TT070, 4045TE050, 4045TT080, 4045TE051, 4045TT081, 4045TF120, 4045TT082, 4045TF150, 4045TT083, 4045TF151, 4045TT084, 4045TF152, 4045TT085, 4045TF158, 4045TT086, 4045TF270, 4045TT087, 4045TF273, 4045TT088, 4045TF275, 4045TT089, 4045TLV50, 4045TT090, 4045TLV51, 4045TT091, 4045TLV52, 4045TT092, 4045TLV53, 4045TT093, 4045TLV54, 4045TT094, 4045TLV56, 4045TT095, 4045TN050, 4045TT096, 4045TP059, 4045TT851, 4045TP066, 4045TT852, 4045TP072 |
|
John Deere Tractors |
3410, 4890, 5415, 5425, 5510, 5520, 5525, 5615, 5625, 5715, 5725, 3410X, 5425N, 5510N, 5520N, 5525N, 5625N |
|
John Deere Backhoe Loaders |
310E, 310G, 310J, 310SE, 310SG, 315SE, 315SG, 410E, 410G, 410J |
|
John Deere Skidders |
280, 280 Series II |
|
John Deere Sprayers |
6700 |
|
John Deere Windrowers |
4895 |
|
John Deere Crawler Dozers |
450H, 550H. 650H |
|
John Deere Excavators |
230LCR |
|
John Deere Wheel Loaders |
344H |
^ OEM part numbers are for reference purpose only.
All pictures shown are for illustration purpose only. Actual product may vary.
