John Deere 4.5L Engine Overhaul Kit, H, PT, Standard Piston Marked RE509540 - RE66094 (Aftermarket)
Description & Features

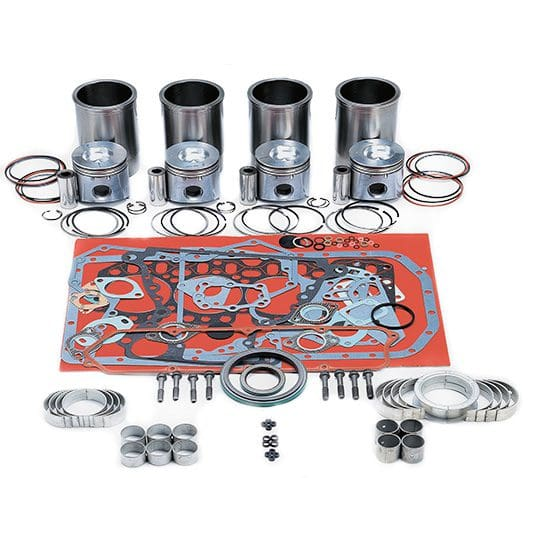

John Deere 4.5L Engine Overhaul Kit, H, PT, Standard Piston (Piston Marked RE509540)
|
Spec |
Value |
|
Bore |
4.19 inch / 106.5 mm |
|
Pin |
1.6250 inch / (+/- .0002) = 41 mm |
|
Kit OEM^ |
RE66094 |
Kit Inclusions:
| Part# | Part Description | Qty |
|
RE501455 |
4045 Gasket Overhaul Set |
1 |
|
RE507850 |
4045 Cylinder Liner Kit | 4 |
|
RE65908 |
Standard 4.5 Conrod Bearing* | 4 |
|
RE65165 |
Standard 4.5 Main Bearing* | 4 |
| RE65168 | Standard 4.5 Thrust Bearing* | 1 |
|
R114083 |
4045 Connecting Capscrew Rod Bolts | 8 |
|
R114082 |
4045 Bushing Connecting Rod 41mm | 4 |
|
R119874 |
4045 Camshaft Bushing | 1 |
| R115299 | 4045 Bushing Balancer Shaft | 6 |
* Kit shipped with standard bearings. Please select correct bearing size when adding to cart.
Compatible With John Deere Equipment:
|
Type |
Model number |
|
Engines |
4045HBM01, 4045TFM75, 4045TL051, 4045HDW52, 4045TL052, 4045HF120, 4045TL053, 4045HF150, 4045TL054, 4045HF157, 4045TL055, 4045HF158, 4045TL056, 4045HF275, 4045TL057, 4045HL070, 4045TL058, 4045HL071, 4045TL059, 4045HL072, 4045TL060, 4045HL073, 4045TL061, 4045HL270, 4045TL062, 4045HL271, 4045TL063, 4045HL272, 4045TL064, 4045HL273, 4045TL070, 4045HLA70, 4045TL071, 4045HLA72, 4045TL072, 4045HLA73, 4045TL073, 4045HP050, 4045TL270, 4045HP051, 4045TL271, 4045HP053, 4045TL272, 4045HTJ76, 4045TL273, 4045HTJ77, 4045TL274, 4045HZ050, 4045TLA50, 4045HZ275, 4045TLA51, 4045TCQ01, 4045TP057, 4045TCQ03, 4045TP060, 4045TDW50, 4045TP061, 4045TF157, 4045TP070, 4045TF158, 4045TP071, 4045TF220, 4045TT052, 4045TF250, 4045TT054, 4045TF254, 4045TT055, 4045TF258, 4045TT061, 4045TF275, 4045TT062, 4045TF276, 4045TT063, 4045TF278, 4045TT067, 4045TFM50, 4045TT069, 4045TFM75, 4045TZ250, 4045TL050, 4045TF252, 4045TSG20 |
|
John Deere Tractors |
6010, 6110, 6110L, 6210, 6210L, 6310, 6310L, 6310S, 6405, 6410, 6410L, 6410S, 6510L, 6610S, 6605, 6610 |
|
John Deere Backhoe Loaders |
120 |
|
John Deere Skid Steers |
280, 280 Series II |
|
John Deere Crawler Dozers |
450G, 455G, 550G, 550H, 555G, 650G |
|
John Deere Wheel Loaders |
444H, 444HCL, TC444H |
^ OEM part numbers are for reference purpose only.
All pictures shown are for illustration purpose only. Actual product may vary.
