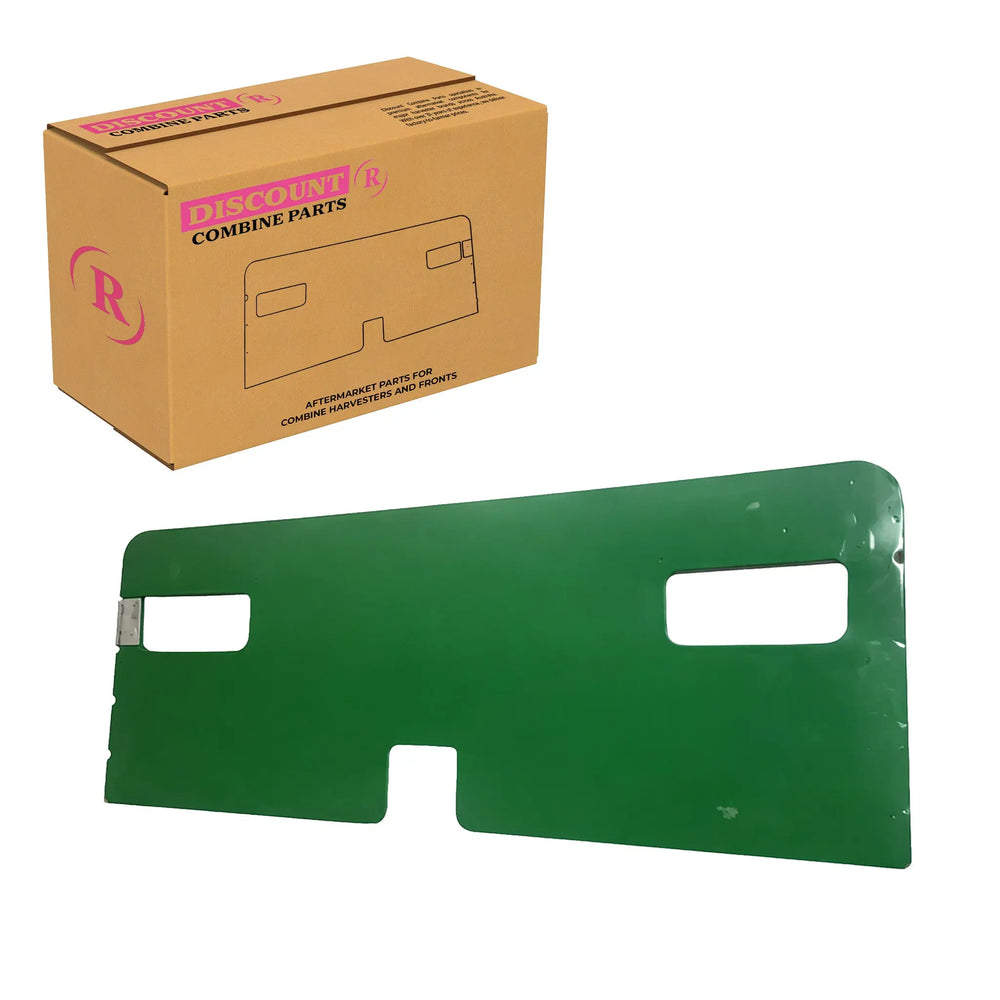

Chaffer Frame Sheet | John Deere Header | AXE10200
Call 0430 609 882 before ordering, or send us your machine model and serial number and we’ll confirm it.
| Replaces OEM / ref | AXE10200 |
|---|---|
| Fits | John Deere |
| Part type | John Deere Header Chaffer Frame Sheet |
| Freight | Freight (heavy or long item) |
| Packed size (approx.) | 135 × 36 × 9 cm |
| Our part no. | DCP-AXE10200 |
- Ships from our Sydney warehouseUsually dispatched within 1–3 business days. Freight is calculated at checkout from your postcode.
- 12-month parts warrantyOn top of your rights under Australian Consumer Law.
- Real parts peopleMon–Fri 8am–5pm on 0430 609 882.
Description
Description:
Heavy-duty aftermarket chaffer frame sheet assembly designed to replace OEM AXE10200 on JD combines. Engineered with precision steel sheet and strong welds to restore the structural integrity of the chaffer system in large-format harvesters.
Type: Chaffer frame sheet assembly – cleaning/separation system
Replaces OEM: AXE10200
Function: Forms the structural sheet component for the chaffer frame, supporting the sieve motion and distribution of crop material across the cleaning system. Ensures correct alignment, minimal distortion and sustained throughput during harvest.
SKU: DCP-AXE10200
Dimensions: Manufactured to match OEM geometry; full sheet thickness, flange size, bolt pattern and mounting location must be confirmed per machine serial number.
Weight: Weight available on request
Value: Factory to Farmer pricing — tough build, honest price
Fits Models: JD large-frame combines including 9670 STS, 9770 STS, 9870 STS — confirm serial-specific fitment.
Fitment
Known applications: JD large-frame combines including 9670 STS, 9770 STS, 9870 STS
Fits: John Deere
Always check the part number on your existing part or in your operator’s manual. If in doubt, tick “Please verify fitment before dispatch” in your cart and we’ll check it for you.
All part numbers and images are for reference purposes only. This is an aftermarket replacement part unless otherwise stated. Discount Combine Parts is independent and is not affiliated with the referenced equipment manufacturers.
